Voltsky 2S 7.4V 5000mAh 37.0Wh 150C Ultra High-Discharge Hardcase RC Competition Car LiPo Battery – XT60
Voltsky 2S 7.4V 5000mAh 37.0Wh 150C Ultra High-Discharge Hardcase RC Competition Car LiPo Battery – XT60
VOLTSKY 7.4V (2S) 5000mAh 150C High-Discharge Hardcase RC Car LiPo Battery
Competition-Grade Punch · XT60 Connector · Impact-Resistant ABS Hardcase
The Voltsky 7.4V (2S) 5000mAh (37.00Wh) hardcase lithium polymer pack is engineered for high-performance Pro Competition Racing, On-Road Touring Car, Drag Racing. Built with premium low internal resistance (IR) pouch cells encased inside an impact-resistant, ultrasonic-sealed hardcase, this battery maintains flat voltage curves under maximum acceleration and delivers instant throttle response with exceptional thermal stability.
COMPLETE FACTORY SPECIFICATIONS
| Nominal Voltage | 7.4V (2S) |
| Rated Capacity | 5000mAh |
| Total Energy Output | 37.00Wh |
| Continuous Discharge Rate | 150C |
| Peak Burst Discharge | 300C |
| Physical Dimensions (L × W × H) | 138 × 47 × 25.1 mm |
| Pack Net Weight | 285g (±5g) |
| Cell Configuration | 2S1P |
| Internal Resistance (IR) | < 1.0 mΩ/cell |
| Case Construction | Competition Hardcase (Ultra High Rate) |
| Discharge Connector | XT60 |
| Discharge Wire Specification | 12AWG 100mm High-Flex Silicone Wire |
| Balance Connector | JST-XH 3-Pin |
| Recommended Charge Rate | 1.0C–3.0C (Max 5C Fast Charge) |
| Cycle Life Expectancy | ≥ 350 Cycles @ 80% DOD |
| Operating Temperature | Discharge: -20°C to +60°C | Charge: 0°C to +45°C |
| Storage Recommendation | 3.80V–3.85V / cell (50% SOC) |
| International Certifications | UN38.3, MSDS, CE, RoHS, ISO 9001 |

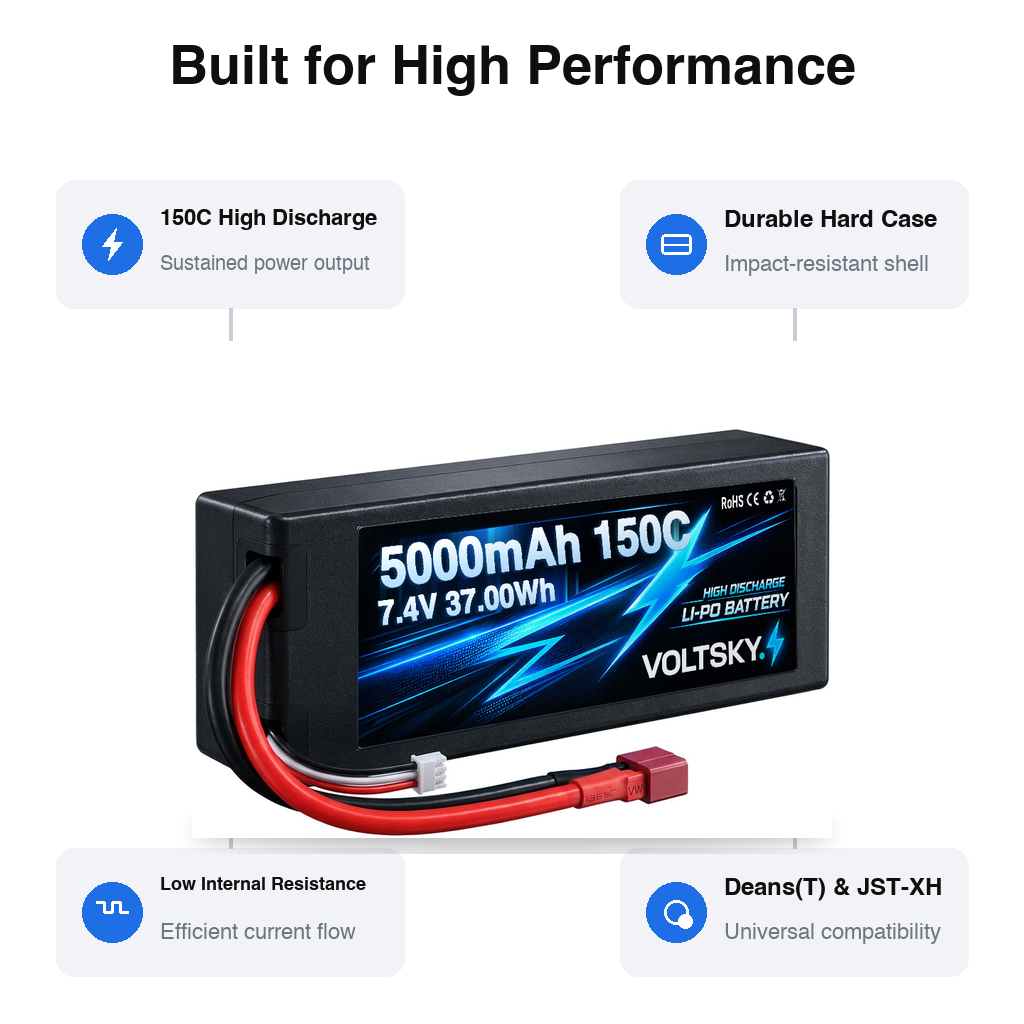

ENGINEERING HIGHLIGHTS
- Precision Automated Grading: Every pouch cell is matched within <5mV voltage delta and <0.2mΩ resistance tolerance prior to ultrasonic busbar welding.
- Impact & Puncture Resistance: Flame-retardant ABS hardcase guards against gravel intrusion, chassis bottoming out, and high-G crash impacts.
- Consistent High Current Delivery: Heavy-gauge silicone leads and gold-plated terminals minimize contact resistance and prevent thermal softening during full-throttle bursts.
B2B Wholesale, Fleet & Custom OEM Manufacturing
Voltsky provides factory-direct wholesale tiers, custom connector termination, private-label silk-screen branding, and OEM batch production for RC hobby brands, race teams, and commercial fleet operators worldwide.
Technical Specifications
Need a custom configuration or sample?
Our engineering team is ready to advise on the right battery solution for your UAV platform.
UAV Battery Procurement FAQ
Can I order a sample before a production order?
Yes. Sample orders are available for qualification testing. Submit your aircraft voltage, payload, connector and required discharge rate for a recommended configuration.
Which shipping and compliance documents are available?
UN38.3, MSDS and applicable transport documents are available for qualified orders. Confirm destination requirements with our sales team before shipment.
Can Voltsky customize the battery pack?
Yes. Voltage, capacity, connector, enclosure, BMS communication and private-label options can be configured for OEM and ODM UAV programs.
How should an industrial UAV battery be charged and stored?
Use a compatible balance charger and follow the supplied charging limits. Store in a cool, dry location at the recommended storage voltage, away from direct heat and physical damage.
What information is needed for a quotation?
Please provide your UAV platform, voltage, continuous and peak current, flight duration target, connector, operating temperature and expected order quantity.
Performance Analysis
12S 44.4V 15000mAh | Test conditions: 25°C ambient, standard discharge protocol
Voltage (V) vs. Capacity discharged (%) at 1C / 5C / 10C rates
Capacity retention (%) — Voltsky Semi-Solid vs. Standard LiPo
* Based on industry benchmarks for semi-solid UAV batteries. Results may vary with operating conditions.
You may also like
Technical Specifications Matrix
| Cell Chemistry | LiPo |
| Nominal Voltage | 7.4V (2S) |
| Rated Capacity | 5000mAh |
| Total Energy Output | 37.0Wh |
| Discharge C-Rating | 150C (Continuous) |
| Physical Dimensions | 138 × 47 × 25.1 mm |
| Pack Net Weight | 285g |
| Standard Connector | XT60 (OEM Available) |
| Operating Temperature | -20°C to +60°C |
| Safety & Certifications | UN38.3 · MSDS · CE · RoHS · ISO 9001 |
Voltsky provides volume pricing, custom connector termination, and OEM pack integration for fleet operators and aircraft OEMs.
