In mission-critical industrial UAV operations—whether surveying vast agricultural acreage, inspecting offshore energy infrastructure, or carrying heavy LiDAR sensors—relying solely on basic analog voltage dividers for battery monitoring introduces unacceptable flight risk. Analog telemetry measures only total pack voltage under load, leaving flight controllers blind to single-cell voltage drop, localized thermal spikes, and actual usable State of Charge (SoC).
Why Enterprise UAVs Require Smart BMS Telemetry
A Smart Battery Management System (BMS) transforms a passive lithium or semi-solid power pack into an intelligent subsystem capable of two-way communication with the drone’s onboard autopilot (such as Pixhawk 6X, Cube Orange+, or proprietary avionics). Key advantages include:
- Individual Cell Voltage Telemetry: Real-time tracking of every series cell (6S to 24S) with 1mV resolution, immediately detecting cell imbalance before catastrophic voltage sag occurs.
- Accurate Coulomb Counting (True SoC): Integrating current sensors to compute precise remaining milliamp-hours (mAh) and battery health (State of Health - SoH), eliminating estimation errors caused by sudden throttle bursts.
- Multi-Point Thermal Mapping: Thermistors embedded deep within cell layers monitor real-time core temperatures, triggering proactive throttle limiting if safety thresholds are reached.
- Cycle Counting & Blackbox Diagnostics: Onboard non-volatile memory logs lifetime charge cycles, peak discharge events, and over-discharge history for fleet maintenance compliance.
DroneCAN vs. SMBus vs. UART: Protocol Comparison
When engineering custom drone battery packs, choosing the right digital interface determines communication reliability and ease of autopilot integration:
| Protocol | Physical Layer | Noise Immunity | Data Rate | Best For |
|---|---|---|---|---|
| DroneCAN / UAVCAN | Differential CAN Bus (2-wire) | Ultra-High (Industrial) | 1 Mbps | Commercial Heavy-Lift, Long-Range UAS, Redundant Power Buses |
| SMBus / I2C | SDA / SCL (Single-ended) | Moderate (Short cables) | 100 kHz | Standard Pixhawk battery monitor port, Consumer/Prosumer Drones |
| UART / RS485 | TX / RX / Differential | High | 115.2 kbps | Custom ground stations, OEM telemetry bridges, tethered drone systems |
ArduPilot & PX4 Setup for DroneCAN Smart Battery
Configuring a DroneCAN smart battery in ArduPilot is straightforward and enables automatic broadcast of uavcan.equipment.power.BatteryInfo messages. In Mission Planner, configure the following parameters:
CAN_P1_DRIVER = 1
# Set Battery Monitor 1 to DroneCAN
BATT_MONITOR = 8 (UAVCAN)
# Enable individual cell monitoring & failsafe triggers
BATT_FS_VOLT_ACT = 2 (Return to Launch / Land on Critical Voltage)
BATT_LOW_MAH = 3000 (Reserve capacity in mAh)

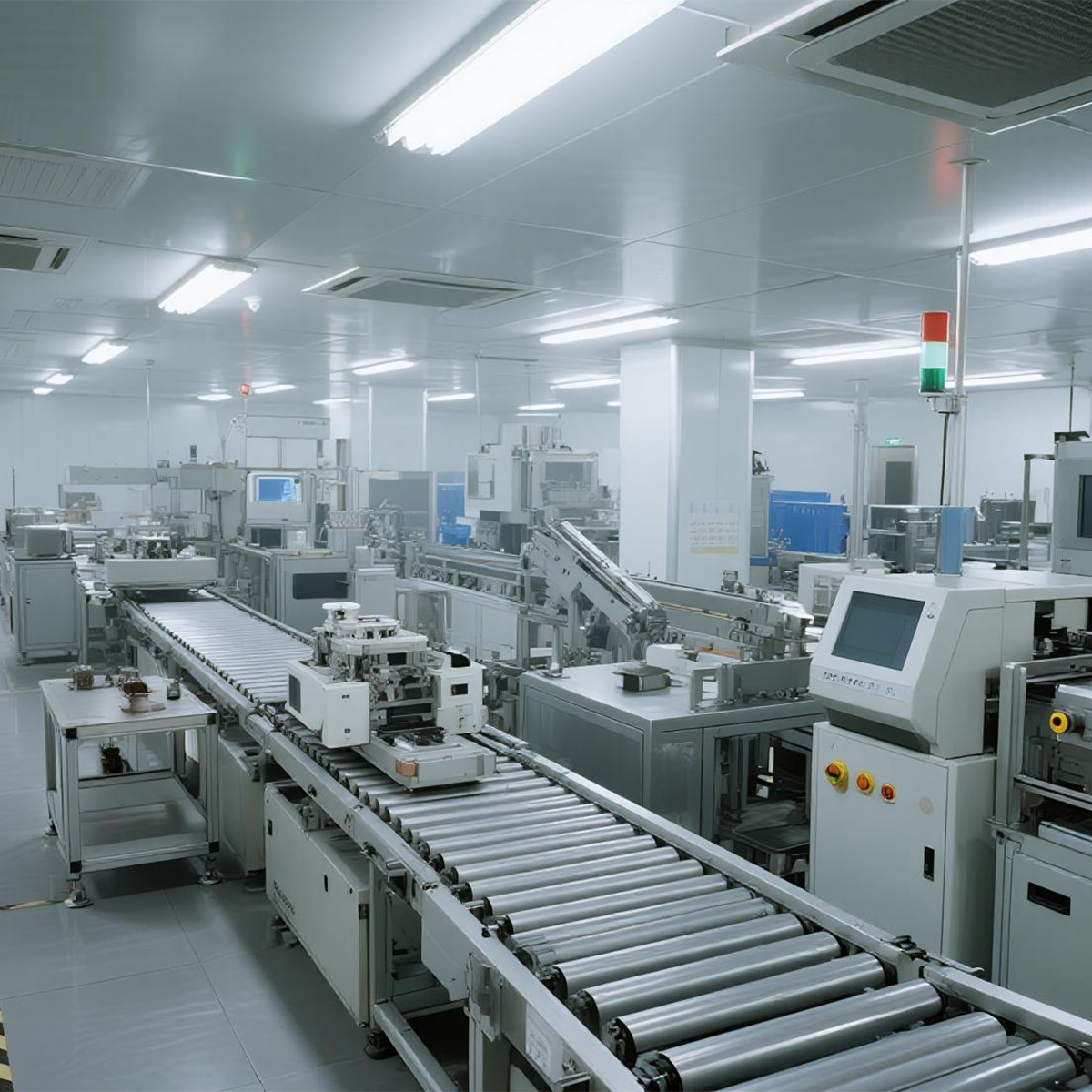

Custom Smart BMS Engineering at Voltsky
At Voltsky UAV Power, our engineering team co-designs the Smart BMS PCB layout and firmware alongside our high-energy semi-solid state cells (up to 350 Wh/kg). We provide pre-flashed, calibrated firmware tailored to your airframe's current profile, connector pinouts (AS150U, XT90-S with signal pins, or custom quick-release rails), and autopilot protocols.
Need Custom Smart BMS Battery Packs for Your UAV?
Whether you are developing an autonomous agricultural sprayer or a long-range tactical eVTOL, our engineering team delivers sample prototypes in 15 days with full DroneCAN/SMBus telemetry validation.
