When designing high-payload or long-endurance commercial drones, energy density (Wh/kg) is only half the equation. The other critical determinant of actual in-air flight duration is the voltage discharge curve under continuous C-rate load. While standard LiPo batteries often experience severe voltage sag midway through flight, next-generation semi-solid state cells maintain an exceptionally flat discharge plateau, maximizing usable watt-hours before reaching the low-voltage cutoff.
The Physics of Voltage Sag: LiPo vs. Semi-Solid State
Standard liquid electrolyte LiPo/LiHV batteries rely on porous polymer separators and liquid solvents. Under sustained 5C to 10C current draw, localized ion depletion and internal heating increase internal resistance (IR), causing an immediate voltage drop across each cell:
- Standard LiPo Behavior: Starts at 4.20V/cell (or 4.35V for LiHV), rapidly drops below 3.70V within the first 30% of discharge, and steeply declines toward 3.50V. Autopilots frequently trigger premature Low-Voltage Return-to-Launch (RTL) while 15–20% of capacity remains unused.
- Semi-Solid State Behavior: Utilizes solid-liquid hybrid electrolyte matrices with high ionic conductivity. Cell voltage quickly settles onto a steady 3.65V–3.75V plateau and sustains that voltage for nearly 75% of the total discharge cycle before tapering.
Bench Test Comparison: 6S 32,000mAh Semi-Solid vs 6S 22,000mAh LiPo
To quantify the real-world difference, Voltsky engineers conducted controlled bench testing simulating a heavy-lift quadcopter with a constant 80A current draw (~2.5C on 32Ah pack):
| Metric | Standard 6S 22,000mAh LiPo | Voltsky 6S 32,000mAh Semi-Solid | Advantage |
|---|---|---|---|
| Pack Weight | 2,550 g | 2,080 g | -18.4% Lighter |
| Nominal Energy | 488.4 Wh (191.5 Wh/kg) | 710.4 Wh (341.5 Wh/kg) | +78.3% Higher Density |
| Average Voltage (50% DoD) | 21.8 V (3.63V/cell) | 22.5 V (3.75V/cell) | Higher Motor Thrust Efficiency |
| Hover Time (Bench Simulated) | 26.5 minutes | 43.2 minutes | +63.0% Flight Endurance |
| End-of-Flight Pack Temp | 58.4°C | 41.2°C | Significantly Cooler / Safer |
Why 5C and 10C Continuous Ratings are Ideal for Industrial UAVs
FPV racing drones require explosive 100C–150C burst discharge for 3 minutes of aggressive acrobatic flight. However, industrial inspection, mapping, and cargo transport UAVs operate on an entirely different flight envelope:
- Continuous hover and cruise draws only 1.5C to 3.5C.
- Wind gust compensation and climb bursts require 5C to 10C.
- Trading unnecessary ultra-high C-rates for maximum gravimetric density (350 Wh/kg) delivers the longest possible mission uptime per gram of takeoff weight.
Voltsky Semi-Solid Product Lineup
Voltsky manufactures purpose-built semi-solid drone battery packs ranging from 6S (22.2V / 23.4V) up to 24S (88.8V) configurations:

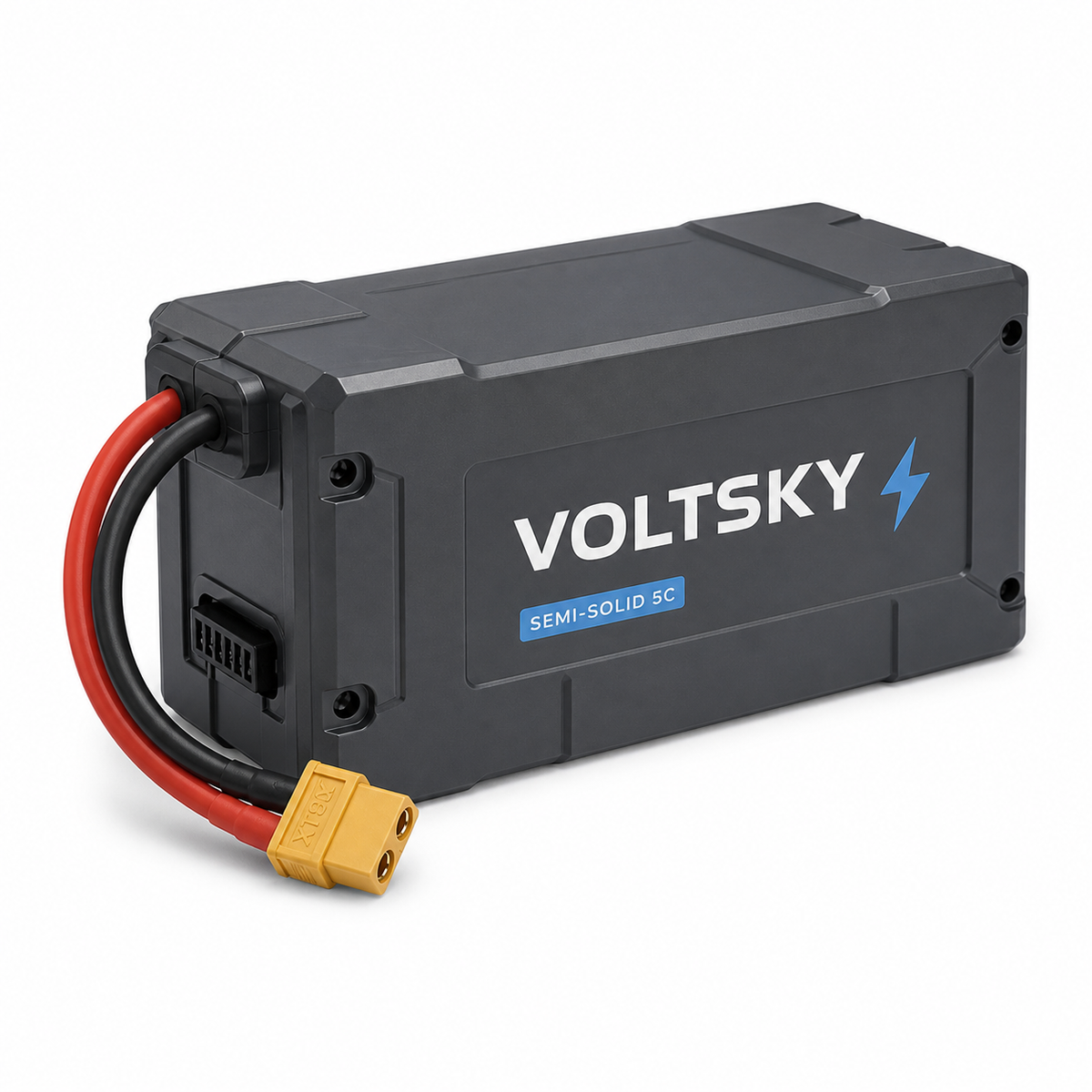

- Voltsky 6S 32,000mAh 5C Semi-Solid (710.4Wh): Flagship for large mapping and cargo multi-rotors.
- Voltsky 6S 30,000mAh 10C Semi-Solid (702.0Wh): High-voltage LiHV chemistry with enhanced burst output.
- Voltsky 6S 20,000mAh 6S2P Long Endurance Pack: Compact dual-parallel design for streamlined airframes.
Ready to Upgrade Your Drone Fleet to Semi-Solid Power?
Consult directly with Voltsky battery engineers to customize cell configuration, discharge ratings, and mechanical enclosures for your commercial UAV airframes.
